20" 1440# Sour Vertical Separator Package
Location:Alberta, Canada
Description

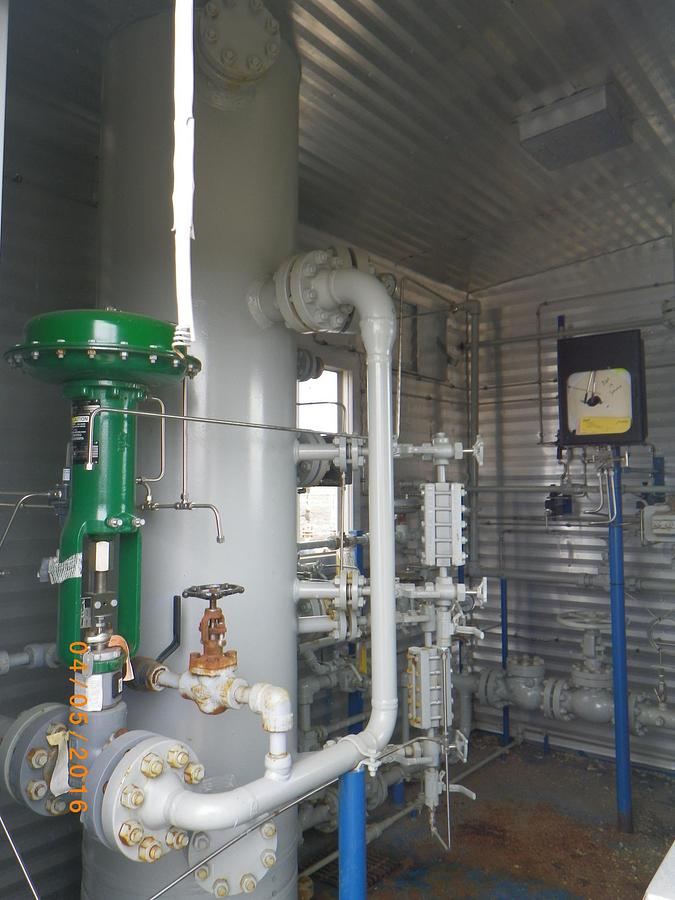

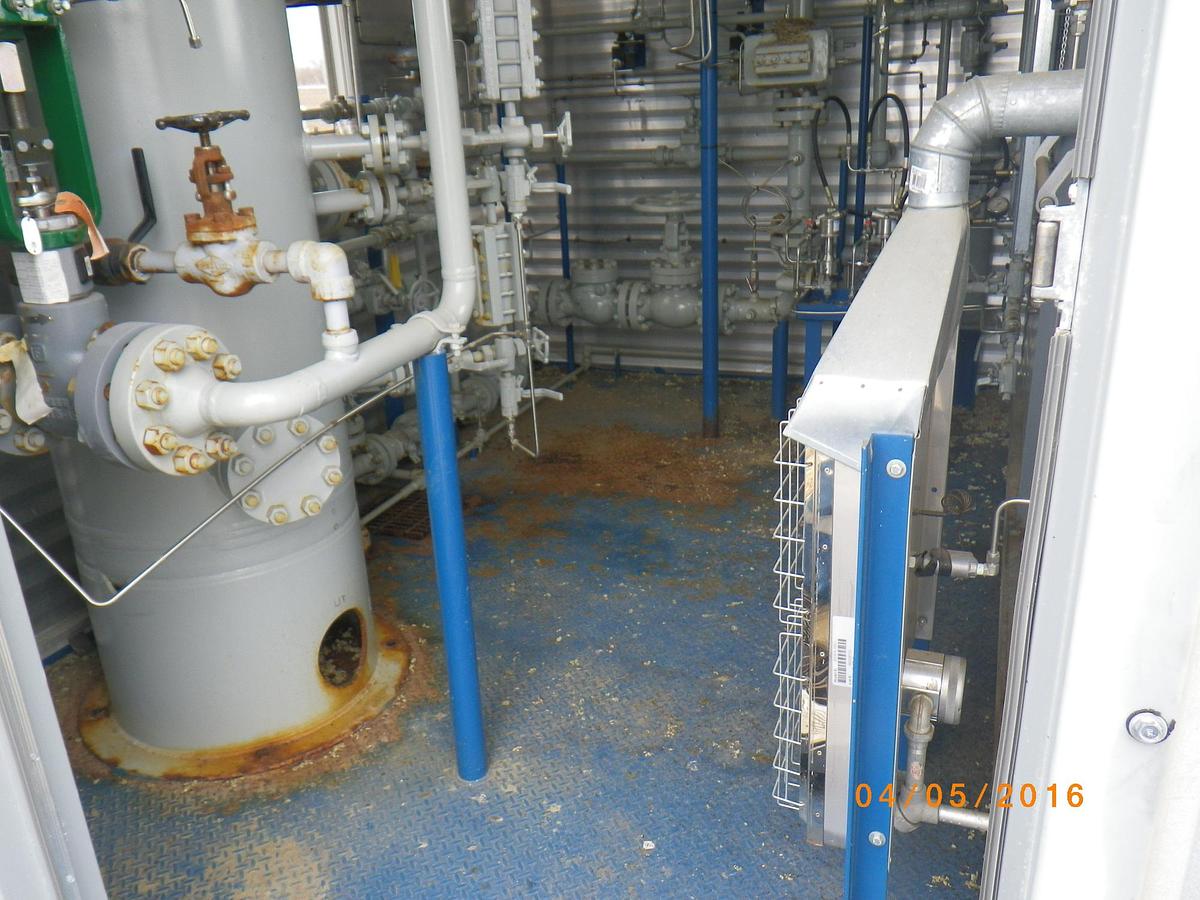

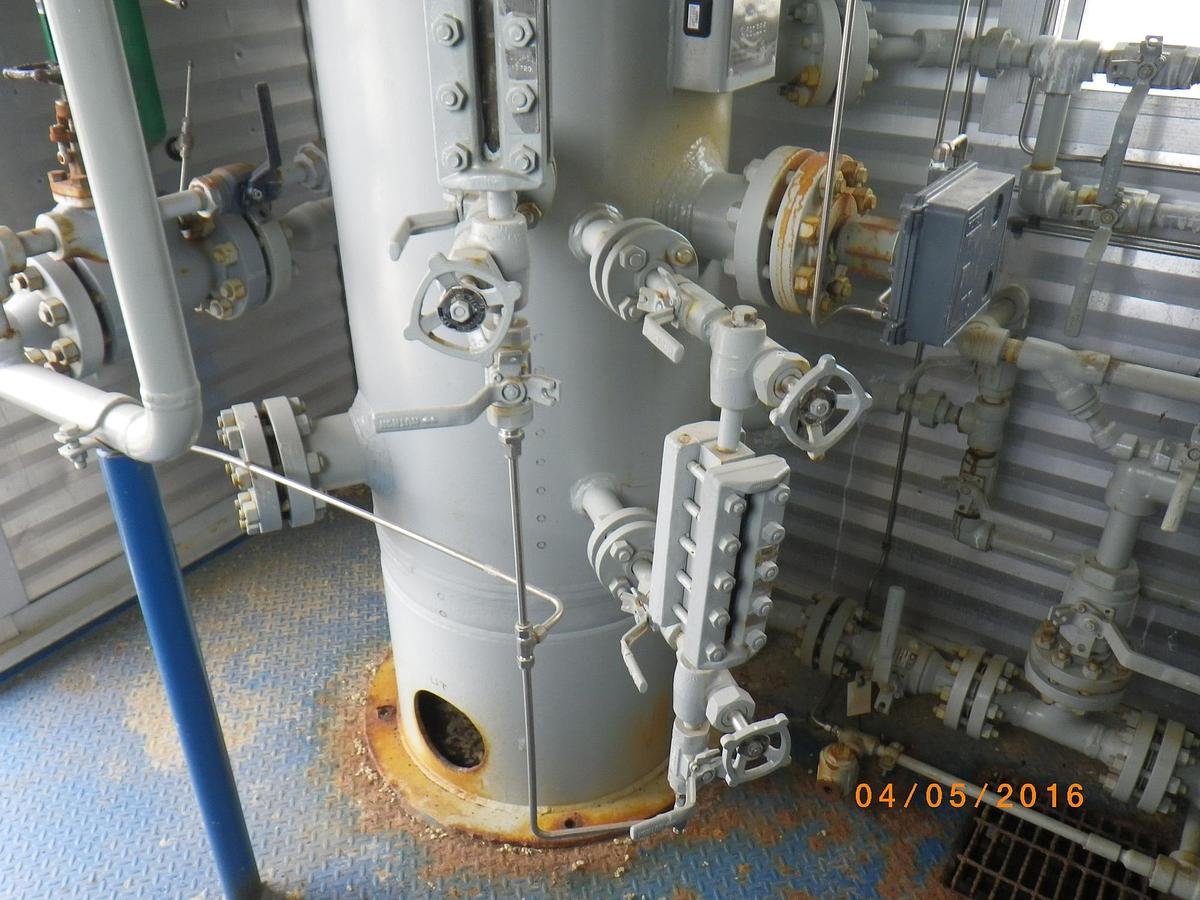

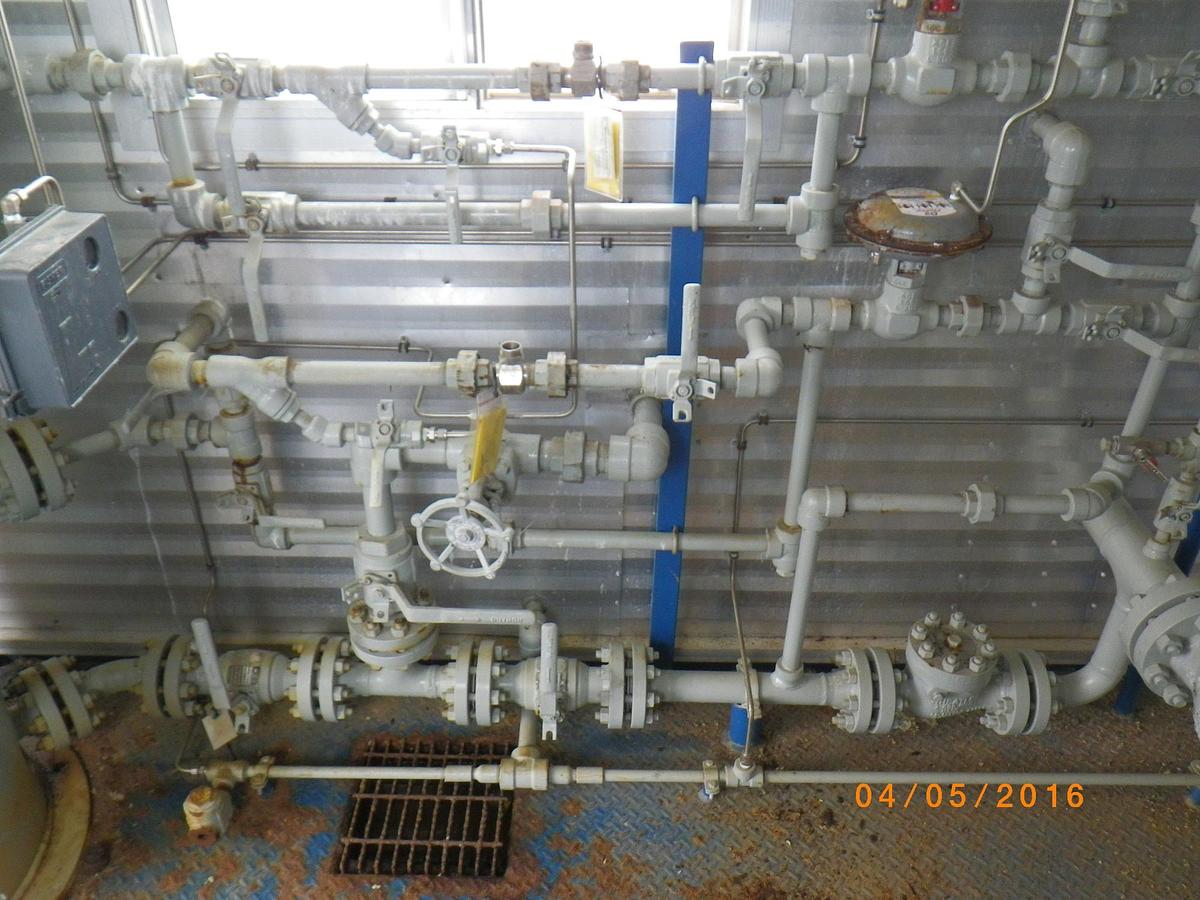

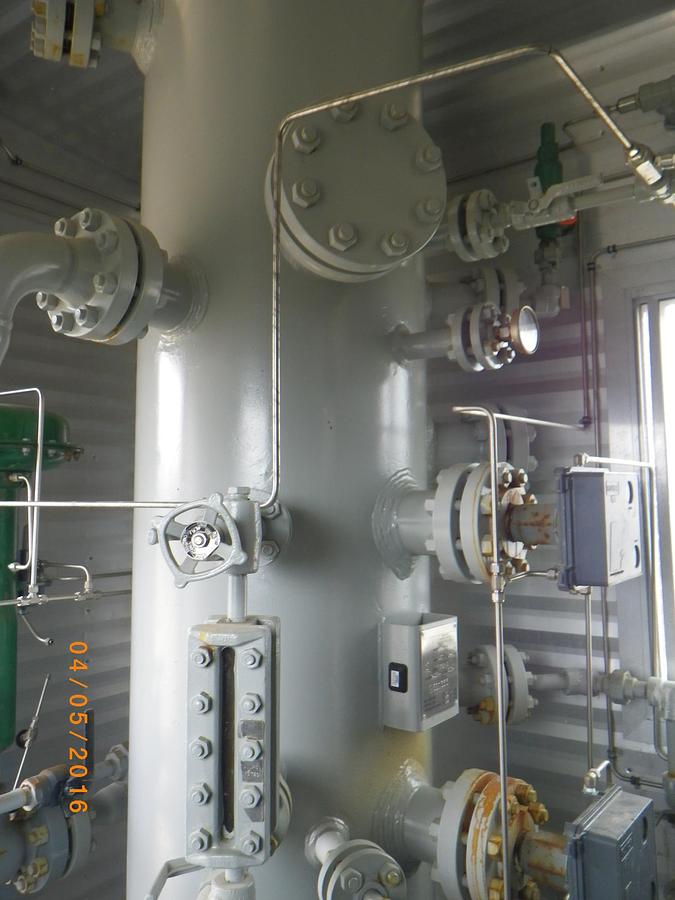

The 20" 1440# Sour Vertical Separator Package by Petro Field is a good used unit designed for sour gas applications. Equipped with 3" 600 ANSI inlet and outlet connections, this separator includes a 3" 600 ANSI Sr Meter Run for sales gas along with a manual globe BPCV. The package has Fisher L2 level controllers, 1" level control valves, gauge glasses and 1" turbine meters for both condensate and water. The fuel gas system features a 6" x 30" 285 PSI fuel gas scrubber with a pressure safety valve, a fuel gas regulator, and an instrument tree. Housed within an approximately 8' x 10' self-framing building, the separator is mounted on a 8' x 15' structural steel skid.
Specifications
| Manufacturer | Petro Field |
| Year | 2004 |
| Condition | Used |
| Serial Number | 04-1158-4 |
| Stock Number | 1268 |
| Diameter | 20" |
| Design Pressure | 1440 PSI |
| Orientation | Vertical |
| Service | Sour |
| Length | 7'6" |
| Phase | 3 Phase |

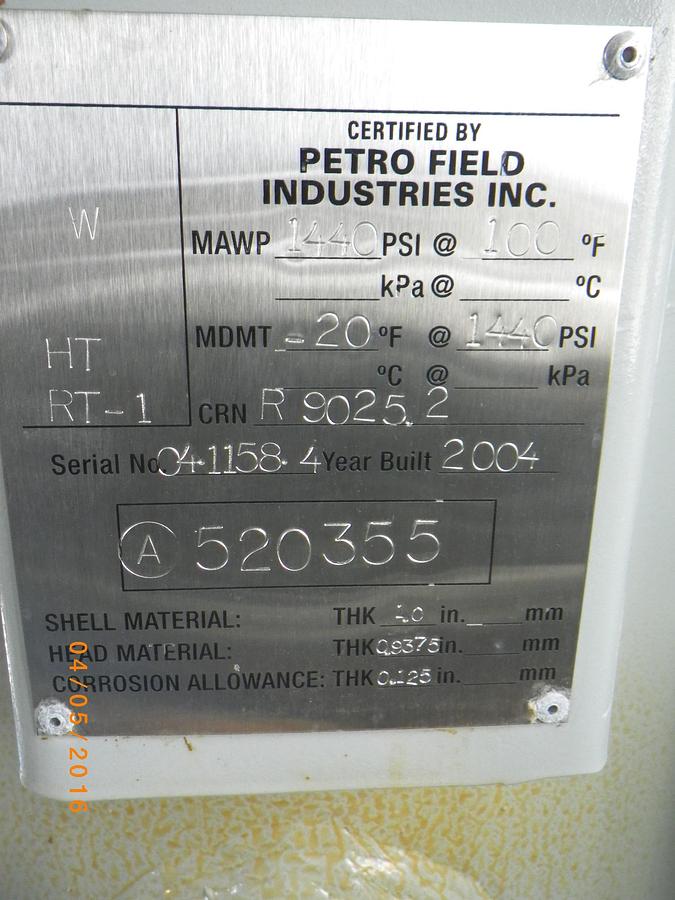

| A# | 520355 |
| CRN# | R9025.2 |
| Inlet | 3" 600 ANSI |
| Outlet | 3" 600 ANSI |

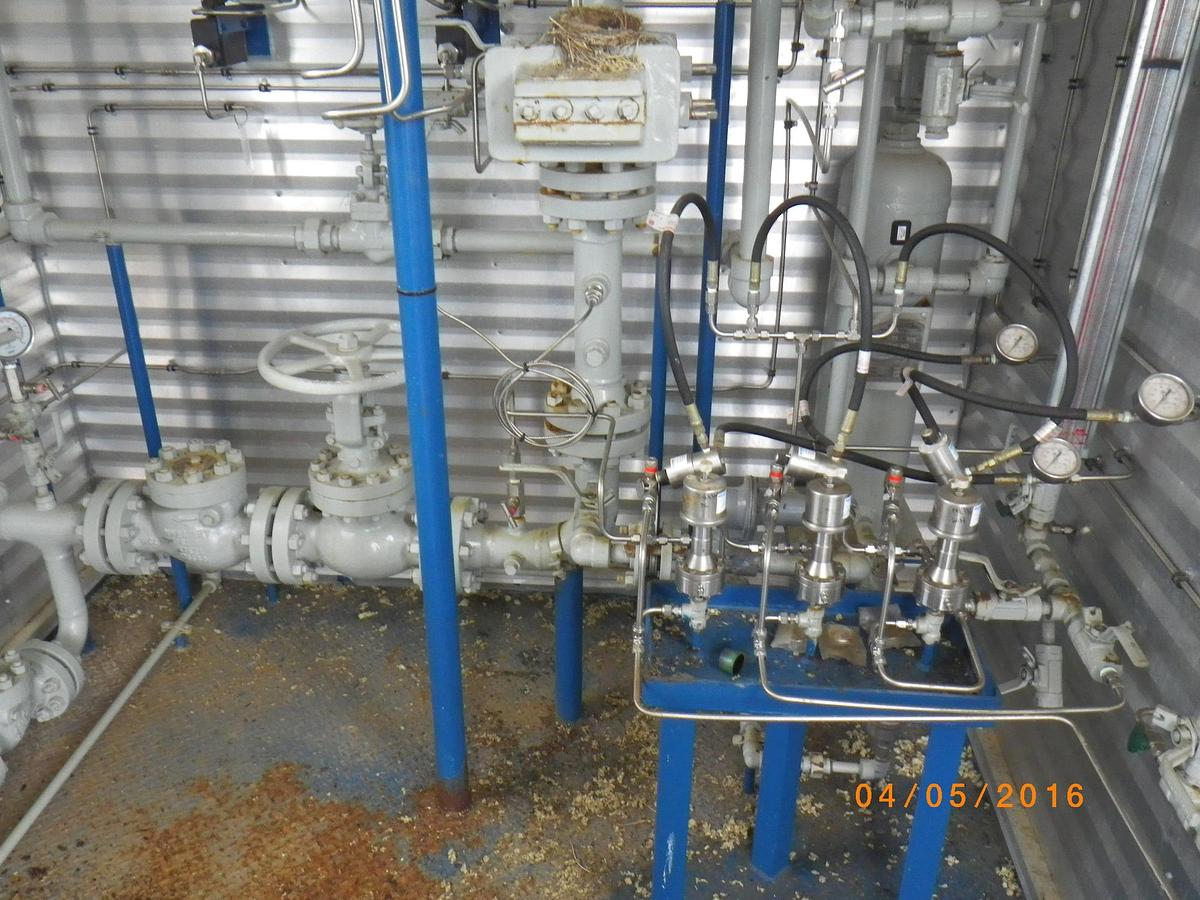

| Sales Gas | 3" 600 ANSI Sr Meter Run with Manual Globe BPCV |
| Condensate Details | Fisher L2 Level Controller w/Fisher 1" Level Control Valve, Gauge Glass, 1" Turbine Meter |
| H2O Details | Fisher L2 Level Controller w/Fisher 1" Level Control Valve, Gauge Glass, 1" Turbine Meter |

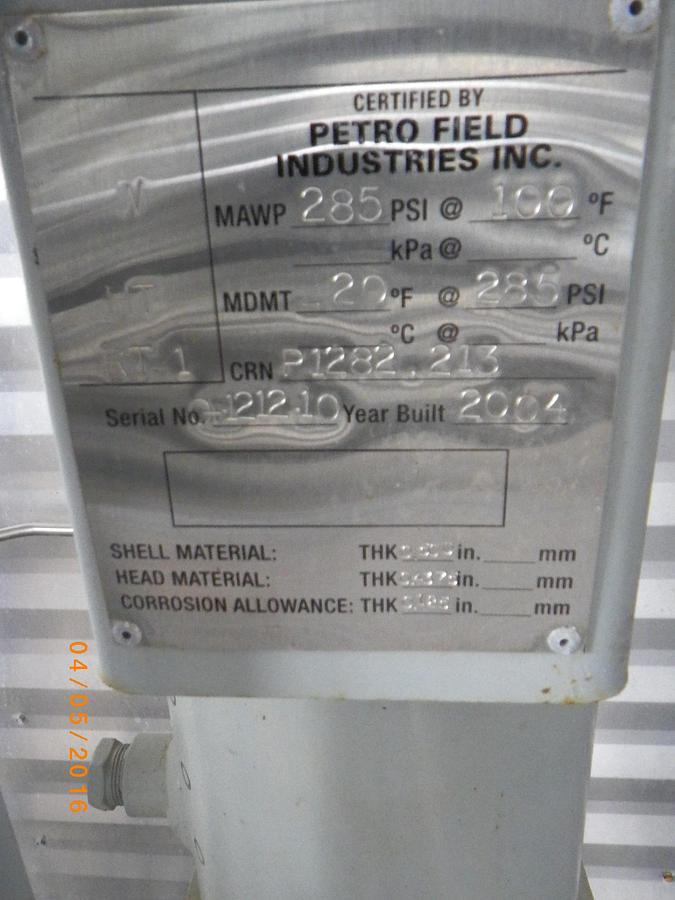

| Fuel Gas | 6" x 30" 285 PSI Fuel Gas Scrubber w/ PSV, Fuel Gas Regulator & Instrument Tree |

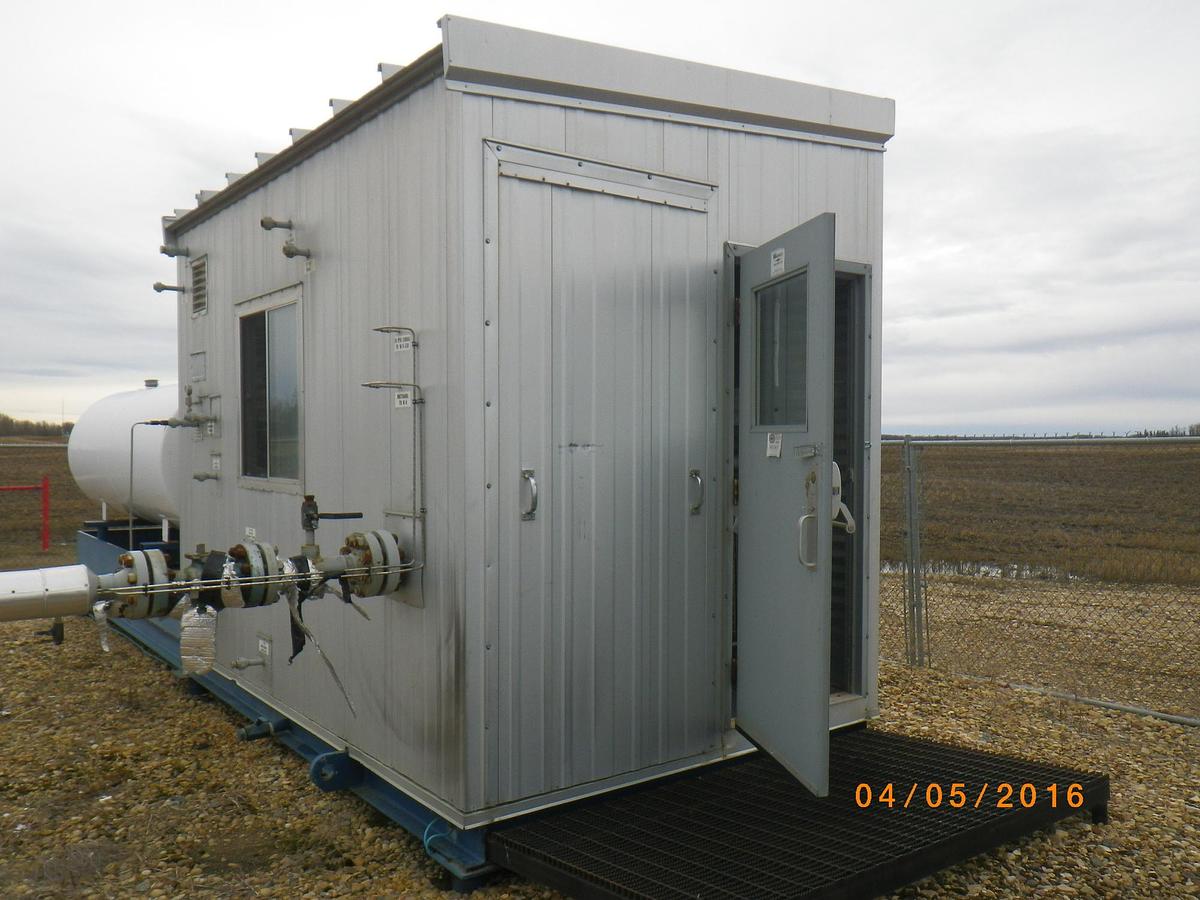

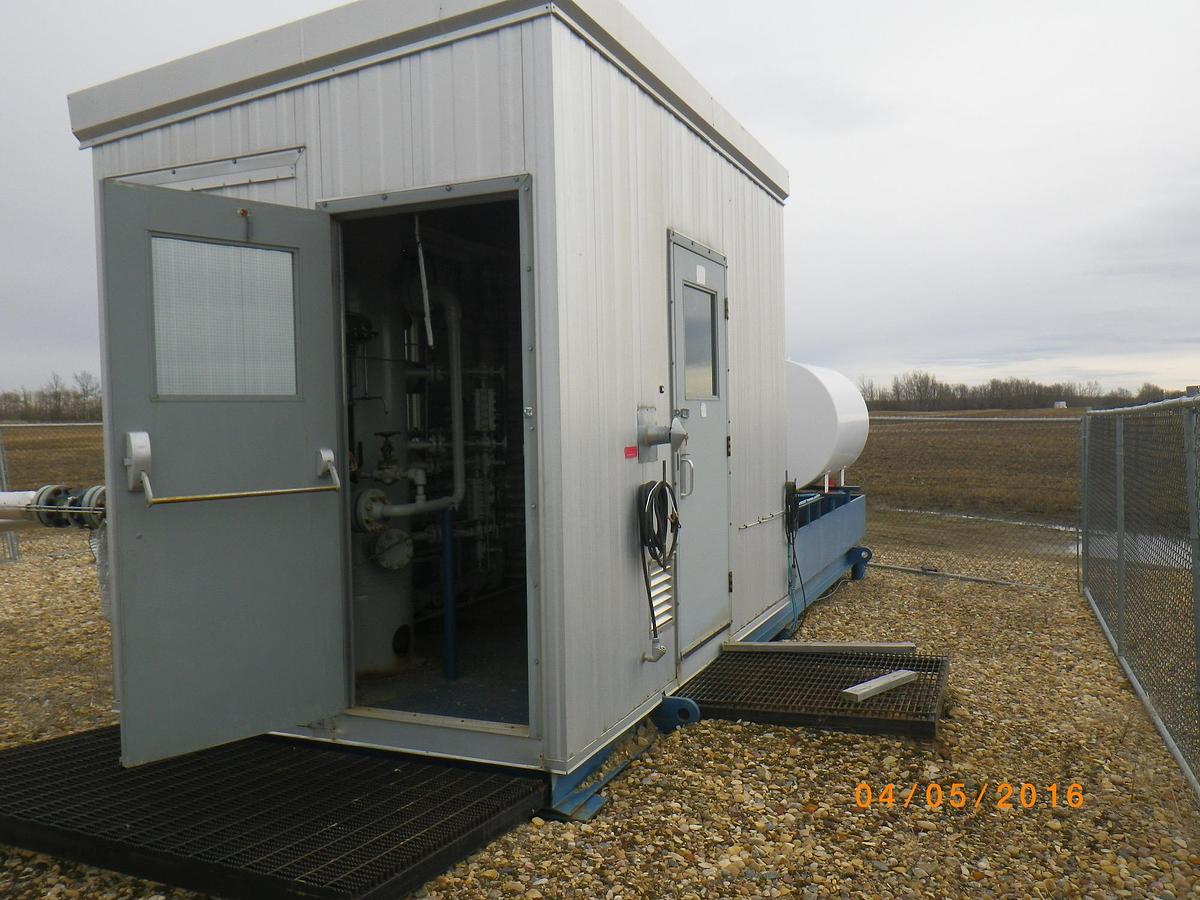

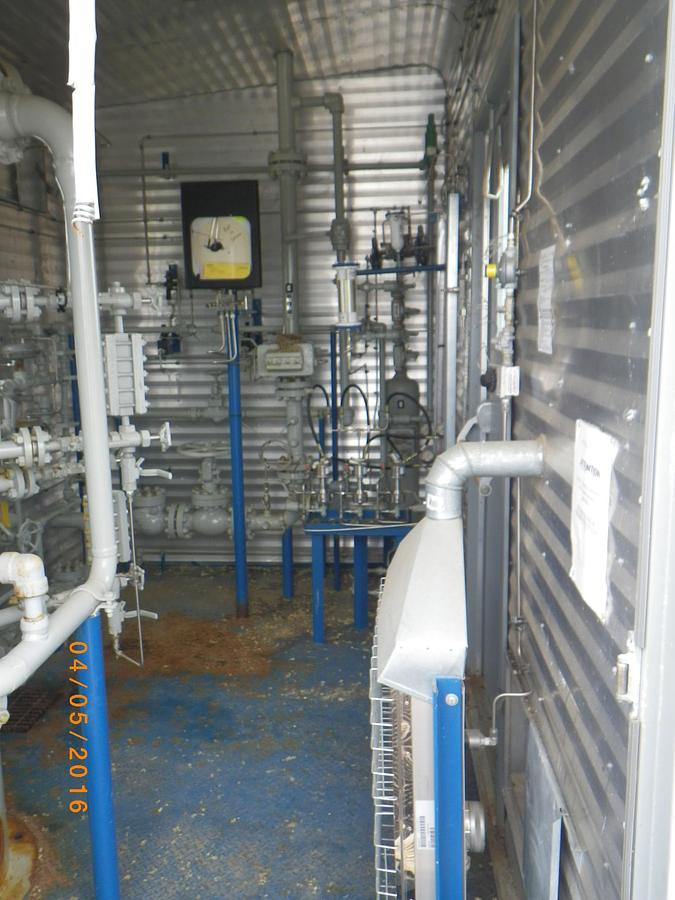

| Building | Approximately 8' x 10' Self Framing Building |

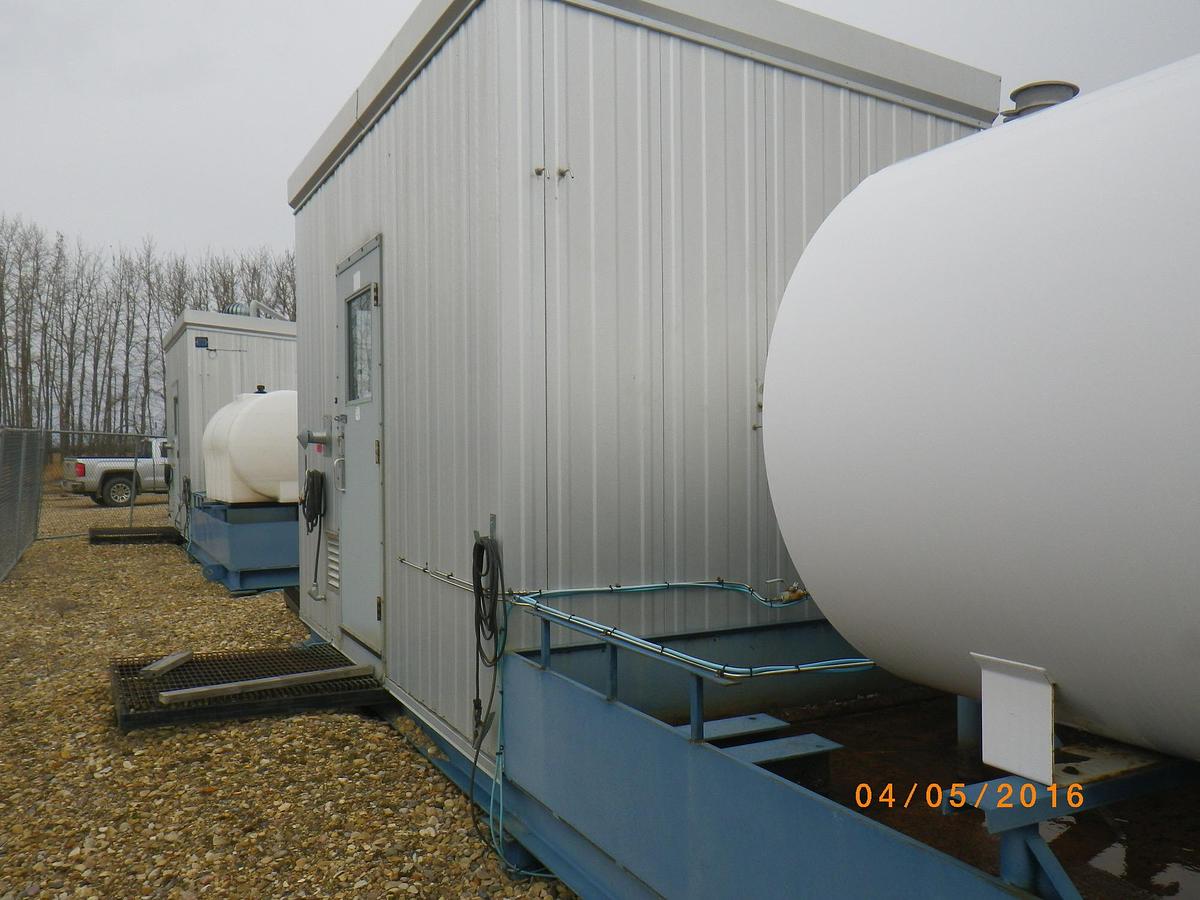

| Skid | Approximately 8' x 15' Structural Steel Skid |
C$18,845
"As is, where is" Good Used Condition
